$ 103.50
Phoenix Contact develops terminal blocks, power supplies, relays, connectors, signal conditioners, controllers & PLCs, I/O systems, Industrial Ethernet, controller system cabling, PCB terminal blocks & connectors, and surge suppression.
| Item number | 1201413 |
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Product key | BE7111 |
| Catalog page | Page 538 (C-3-2019) |
| GTIN | 4017918017316 |
| Weight per piece (including packing) | 10.806 g |
| Weight per piece (excluding packing) | 10.2 g |
| Customs tariff number | 39269097 |
| Country of origin | PL |
Product Properties

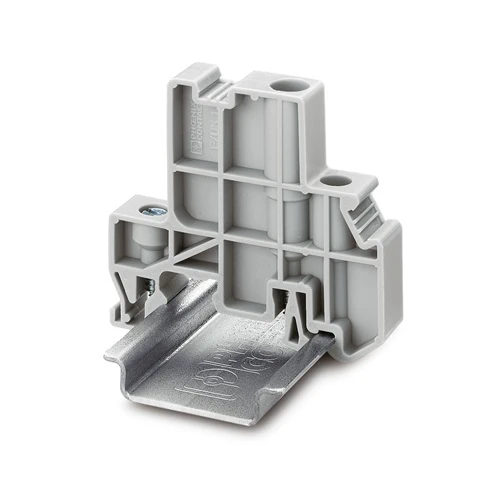

| Product type | End bracket |
| Tightening torque | … 0.5 Nm |
| Width | 10 mm |
| Height | 55.5 mm |
| Depth | 50 mm |
| Depth on NS 35/7,5 | 51.5 mm |
| Length | 55.5 mm |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C … 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C … 70 °C |
| Ambient temperature (actuation) | -5 °C … 70 °C |
| Permissible humidity (storage/transport) | 30 % … 70 % |
| Mounting type | NS 35/7,5 |
| NS 35/15 | |
| NS 32 |
| Weight | N/A |
|---|---|
| MOQ(pcs) |
