$ 179.40
Phoenix Contact develops terminal blocks, power supplies, relays, connectors, signal conditioners, controllers & PLCs, I/O systems, Industrial Ethernet, controller system cabling, PCB terminal blocks & connectors, and surge suppression.
| Item number | 2285603 |
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Product key | AAHHAA |
| Catalog page | Page 791 (C-1-2013) |
| GTIN | 4017918056001 |
| Weight per piece (including packing) | 177.67 g |
| Weight per piece (excluding packing) | 177.583 g |
| Customs tariff number | 85369010 |
| Country of origin | PL |

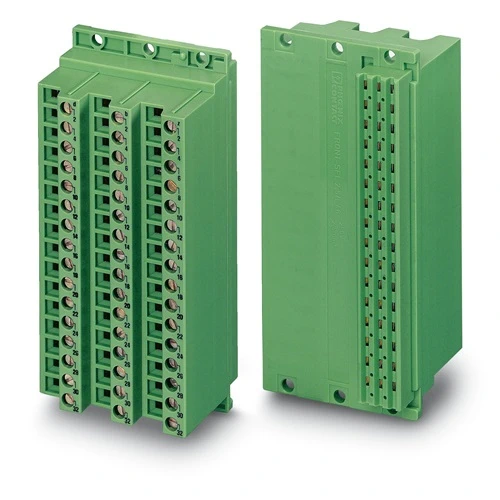

| Product type | 19″ socket strip |
| Product family | FRONT-SFL 2,5 |
| Type | F |
| Number of positions | 48 |
| Pitch | 0 mm |
| Rated surge voltage (III/3) | 4 kV |
Connection Data
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Screw thread | M2,5 |
| Width | 95 mm |
| Height | 35.3 mm |
| Length | 45.32 mm |
| Hole diameter | 2.8 mm |
| Pitch | 0 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
| Contact surface | Tin Sn |
| Connection in acc. with standard | EN-VDE |
| Type of packaging | packed in cardboard |
| Weight | N/A |
|---|---|
| MOQ(pcs) |
