$ 66.70

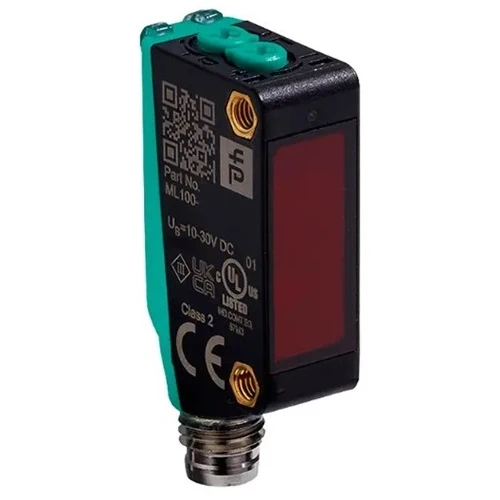

PEPPERL+FUCHS Diffuse mode sensors are particularly easy to install, since only one device has to be fitted and no reflector is required. These sensors operate primarily at close range, feature optimum switching accuracy, and can reliably detect even very small objects. The sensors with background suppression sense only a specific area in front of the sensor. The sensor ignores any objects that are outside of this area. Sensors with background suppression are also insensitive to interfering objects in the background and are still extremely precise. Sensors with background evaluation are always used in applications with a fixed background in the measuring range with which you can align the sensor.
| Detection range | 0 … 1000 mm |
| Adjustment range | 100 … 1000 mm |
| Reference target | standard white, 100 mm x 100 mm |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | no |
| Diameter of the light spot | approx. 75 mm at a distance of 1000 mm |
| Opening angle | approx. 2 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2:2007+A1:2012 |
| MTTFd | 860 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Operation indicator | LED green: power on |
| Function indicator | LED yellow, lights up with receiver lit |
| Control elements | sensitivity adjustment |
| Control elements | Light-on/dark-on changeover switch |
| Operating voltage | UB | 10 … 30 V DC |
| Ripple | max. 10 % | |
| No-load supply current | I0 | < 20 mA |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | Ud | ≤ 1.5 V DC |
| Switching frequency | f | 1000 Hz |
| Response time | 0.5 ms |
| Product standard | EN 60947-5-2 |
| UL approval | cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) |
| Degree of protection | IP67 | ||||||
| Connection | plug M8 x 1 , 4-pin | ||||||
| Material | |||||||
|
|||||||
| Mass | approx. 10 g | ||||||
| Tightening torque, fastening screws | 0.6 Nm | ||||||
| Dimensions | |||||||
|
|||||||
| Weight | 0.010 kg |
|---|---|
| Dimensions | 2 × 1.1 × 3.1 cm |
