$ 6.67 – $ 12.88
| Applicable relay model*1 |
Mounting Method |
Conductive part protection |
Terminal Type |
Applicable crimp terminal/ Electric wire |
Exclusive short bar (Order Separately) |
Model |
|---|---|---|---|---|---|---|
| G2R-1-S | Mounted on a DIN track or with screws |
Available | Push-In Plus Terminal |
Ferrules Solid wire Stranded wire |
Available | P2RF-05-PU *2 |
| Screw terminal (M3 screw size) |
Forked terminals Solid wire Stranded wire |

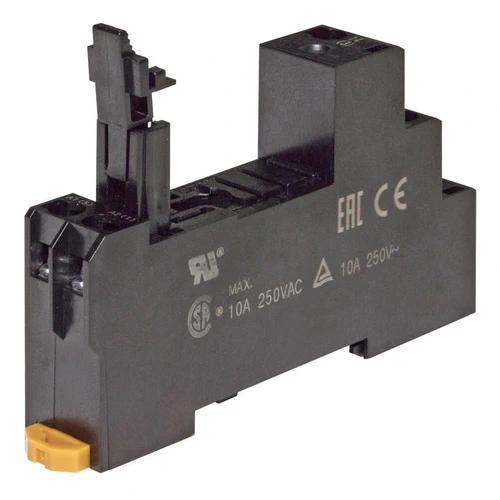

Available | P2RFZ-05-E *4 | |||
| Option (Terminal cover sold separately) *3 |
Screw terminal (M3.5 screw size) |
Round terminals Forked terminals Solid wire Stranded wire |
Available | P2RFZ-05 | ||
| G2R-2-S | Mounted on a DIN track or with screws |
Available | Push-In Plus Terminal |
Ferrules Solid wire Stranded wire |

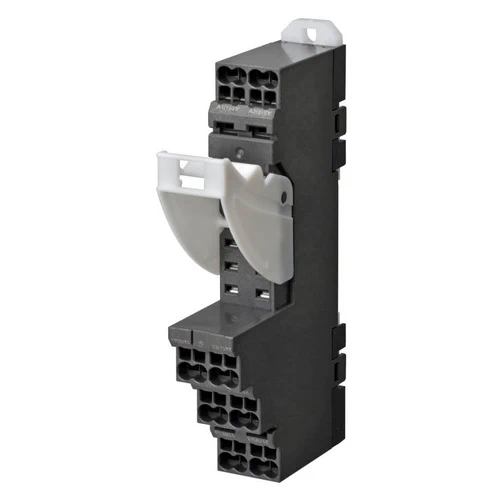

Available | P2RF-08-PU *2 |
| Screw terminal (M3 screw size) |
Forked terminals Solid wire Stranded wire |

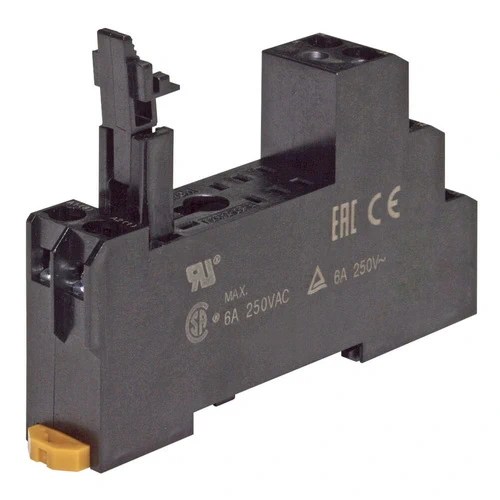

Available | P2RFZ-08-E *4 | |||
| Option (Terminal cover sold separately) *3 |
Screw terminal (M3.5 screw size) |
Round terminals Forked terminals Solid wire Stranded wire |
Available | P2RFZ-08 |
*1.The applicable relay model is a plug-in terminal type.
*2.There are screw mounting holes in the DIN hooks on the P2RF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
with screws.
*3.Terminal cover type is P2CZ-Z. (Order Separately) For details, refer to the on below.
*4.The finger-protection type (P2RFZ-[][]-E) is a type in which the terminal cover is integrated into the socket. Round
terminals cannot be used.
Use forked terminals or ferrules instead.
| Model |
|---|
