$ 330.28
Banner produce industrial sensors range such as laser distance measurement sensors, photoelectric sensors, fiber optic sensors, fiber optic sensors amplifiers sensors, temperature & vibration sensors, slot, label and arrays, registration mark, color and luminescence sensors, pick-to-light sensors.

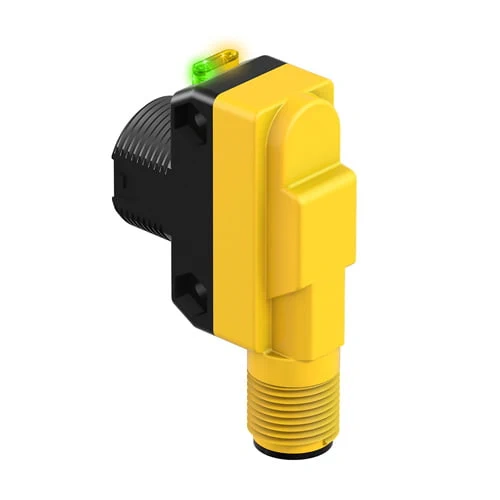

WORLD-BEAM QS18 Series: Laser Class 2; Cross
Range: 15 m; Input: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) cable
| Article Number | 75969 |
| Cable Length (m) | 2 |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| Sensing Mode ( General ) | Opposed |
| Sensing Mode ( Detailed ) | Laser Emitter |
| Housing Style | Rectangular w/ M18 Mount |
| Primary Housing Material | ABS |
| Small Visible Spot | Laser |
| Laser Classification | Class 2 |
| Max Sensing Distance (mm) | 15000 |
| Outputs | N/A |
| Power Supply / Supply Voltage | 10-30V dc |
| Connection | Cable |
| Quick Disconnect Type | No QD |
| Min Op. Temp. (°C) | -10 |
| Operation | N/A |
| Max Op. Temp. (°C) | 50 |
| Output response time (ms) | N/A |
| Special Feature : Intrinsically Safe | No |
| Special Feature : Remote Tech | No |
| Special Feature : Water Detection | No |
| Sensing Beam Wavelength | 650 |
| Delay at Power-up (ms) | 10 |
| Repeatability (µs) | N/A |
| Number of Pins | 4 |
| IP Rating | IP67 |
| NEMA Rating | NEMA 6 |
| Max Op. Relative Humidity [%] | 95% @ 50°C |
| Lens Material | PMMA |
| Adjustments | N/A |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature : Timing (Hold / Delay) | No |
| Feature : Encapsulated | No |
| Feature : Hazardous Area | No |
| Feature : Audible | No |
| Feature : Chemical Resistant | No |
| Feature : Quick Disconnect | No |
| DeviceNet | No |
| IO Link | No |
| EPLAN Cabinet Installable | No |
