$ 92.46 – $ 407.56

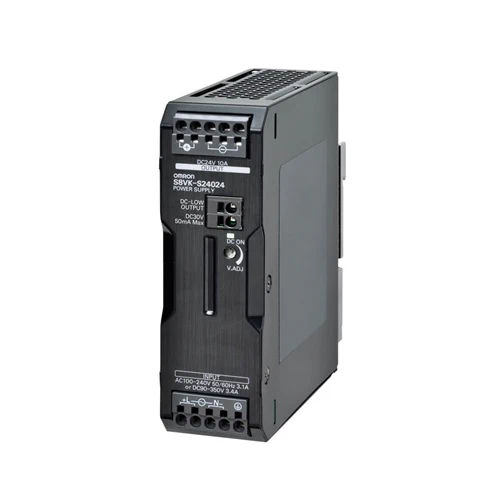

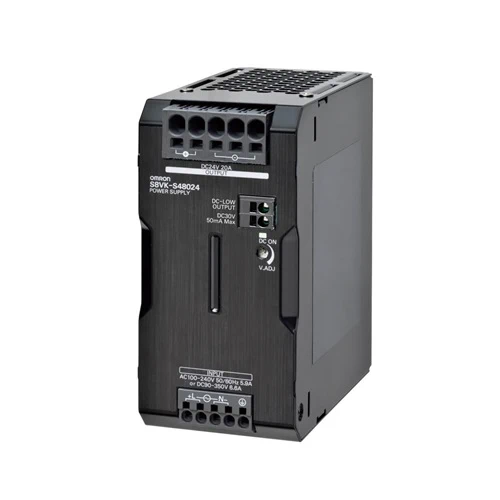

| Model | S8VK-S06024 | S8VK-S12024 | S8VK-S24024 | S8VK-S48024 |
| Type | Book type | Book type | Book type | Book type |
| Mounting method | DIN rail | DIN rail | DIN rail | DIN rail |
| Phase | Single | Single | Single | Single |
| Power output | 60 W | 120 W | 240 W | 480 W |
| Efficiency | 89% | 92% | 93% | 93% |
| Output voltage | 24 V | 24 V | 24 V | 24 V |
| Rated output current | 2.5 A | 5:00 AM | 10:00 AM | 20 A |
| Power boost ratio | 120% | 120% | 150% | 150% |
| Temperature range | -40-70 °C | -40-70 °C | -40-70 °C | -40-70 °C |
| Terminal | Push-in | Push-in | Push-in | Push-in |
| Communication port(s) | None | None | None | None |
| Alarm function | – | – | – | – |
| Number of output branches | 1 | 1 | 1 | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V | 100-240 V | 100-240 V | 100-240 V |
| Allowable supply voltage AC | 85-264 V | 85-264 V | 85-264 V | 85-264 V |
| Allowable supply voltage DC | 90-350 V | 90-350 V | 90-350 V | 90-350 V |
| Product Width (unpacked) | 32 mm | 55 mm | 38 mm | 60 mm |
| Product Height (unpacked) | 90 mm | 90 mm | 124 mm | 124 mm |
| Product Depth (unpacked) | 90 mm | 90 mm | 122 mm | 122 mm |
| Product Weight | 0.250g | 0.400g | 0.700g | 1.150g |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model |
