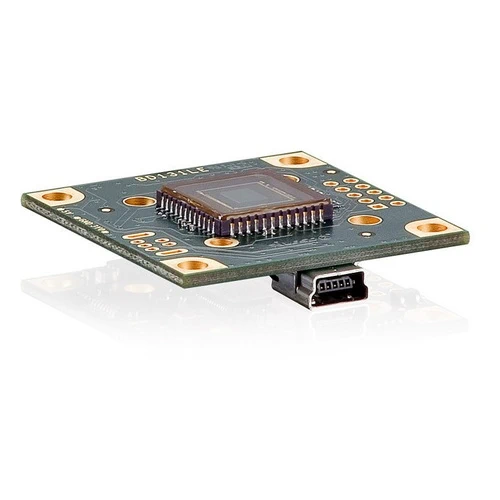

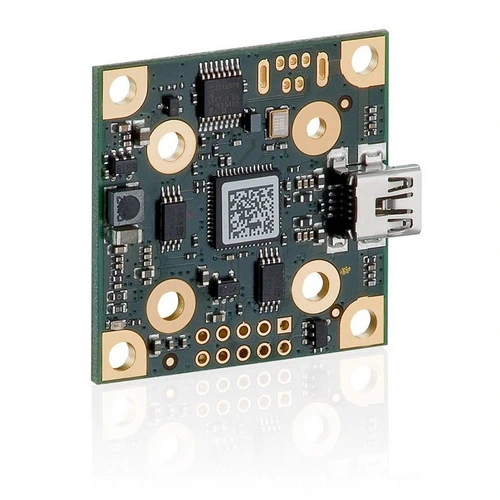

UI-1552LE IDS Camera

$ 234.60

USB 2.0, CMOS, 18.3 fps, 1600 x 1200, 1.92 MPix, 1/3″, ON Semiconductor, Rolling Shutter

Product:UI-1552LE-C (colour)

(Illustrations may differ from the original)

SKU N/A Category

IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE, 5 GigE, 10 GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.

Meanwhile, if you need technical support please email us sales@inosaki.com

Camera Feature

The UI-1552LE with the 1/3″ 2 megapixel CMOS sensor (MT9D131STC) from ON Semiconductor delivers a resolution of 1600 x 1200 pixels at an aspect ratio of 4:3 and 18 frames per second. It can deliver low-noise preview images at a higher frame rate using subsampling.

IDS Software Suite is an identical software package for all IDS cameras. It supports all sensor features. For Windows and Linux (32 and 64 bit)

Camera Data

Item number AB.0010.1.28800.00
Name UI-1552LE
Family LE
Interface USB 2.0
Sensor type CMOS
Manufacturer ON Semiconductor
Frame rate 18.3 fps
Resolution (h x v) 1600 x 1200
Optical Area 4.480 mm x 3.360 mm
Shutter Rolling Shutter
Optical class 1/3″
Resolution 1.92 MPix
Pixel size 2.80 µm
IP code No
Data sheet UI-1552LE-C

Camera Functions

  • Horizontal and vertical binning, subsampling, and AOI modes
  • Rolling/global start shutter

Additional information

Weight N/A
Dimensions N/A
