$ 724.50
Ethernet, CMOS, 14.1 fps, 2560 x 1920, 4.92 MPix, 1/2.5″, onsemi, Global Shutter, Global Start Shutter, Rolling Shutter
Product:

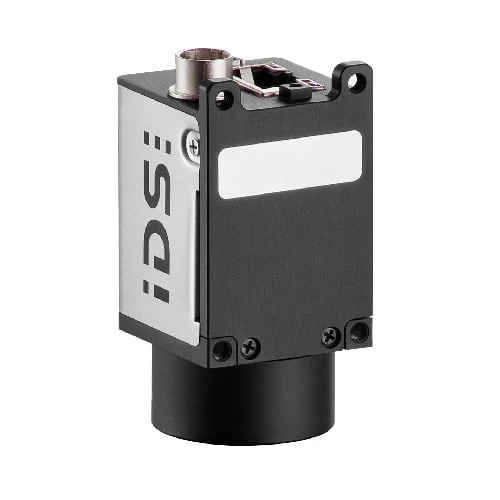

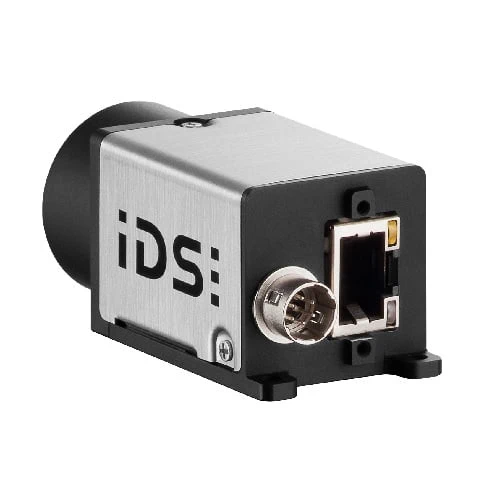

UI-5480CP-M-GL(monochrome)
(Illustrations may differ from the original)
IDS industrial camera or machine vision cameras was the most easy integration cameras in the market. Therefore is so easy for IDS cameras become most compatible with market most popular machine vision software such as OpenCV, Labview, Cognex and Halcon vision software. IDS also provide wide range of industrial C-mount cameras such GigE, 5 GigE, 10 GigE, USB 2.0, USB 3.0, and USB 3.1 interfacing models.
Meanwhile, if you need technical support please email us sales@inosaki.com
The UI-5480CP is fitted with the 5 megapixel CMOS sensor (MT9P031STM/MT9P031STC). About half an inch in size, the sensor delivers a resolution of 2560 x 1920 pixels as well as rolling and global start shutter features. The sensor is extraordinarily sensitive and is a real megapixel CCD replacement. The various shutter modes provide ideal parameters for every application to produce sharp, low-noise images.
| Item number |
|
|---|---|
| Name | UI-5480CP |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | onsemi |
| Frame rate @ resolution max. | 14.1 fps |
| Resolution (h x v) | 2560 x 1920 |
| Optical Area | 5.632 mm x 4.224 mm |
| Shutter | Global Start Shutter, Rolling Shutter |
| Optical class | 1/2.5″ |
| Resolution | 4.92 MPix |
| Pixel size | 2.20 µm |
| IP code | IP30 |
| Product Life Cycle | Series |
| Sensor model | MT9P031 |
| Data sheet |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
