Product Number	SF4C-H8	SF4C-H12	SF4C-H16	SF4C-H20	SF4C-H32
Part Number	SF4C-H8	SF4C-H12	SF4C-H16	SF4C-H20	SF4C-H32

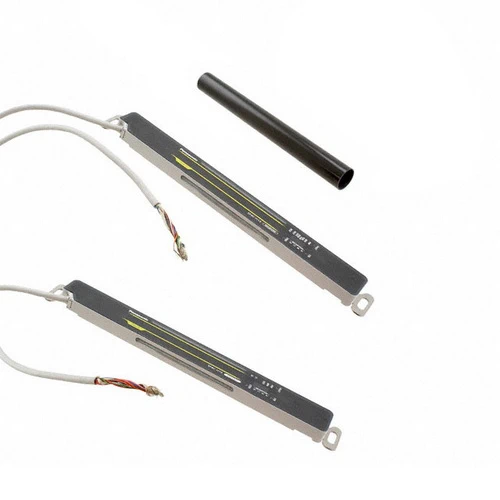

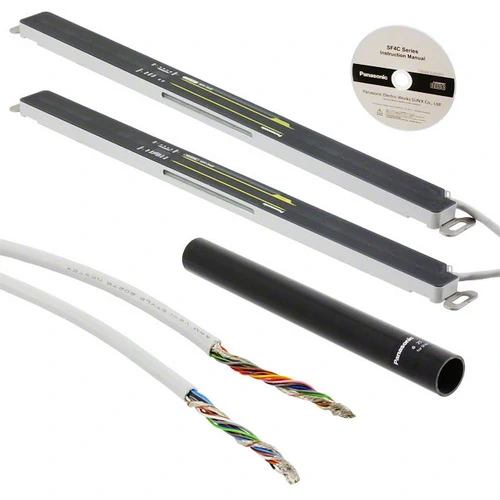

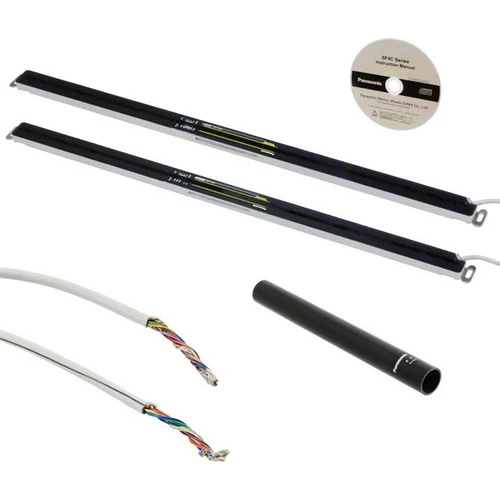

Products Name	Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]	Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]	Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]	Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]	Ultra-slim Safety Light Curtain [Type 4 PLe SIL3]
Product details	Min. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch) [Cable type]	Min. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch) [Cable type]	Min. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch) [Cable type]	Min. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch) [Cable type]	Min. sensing object ø25 mm ø0.984 in type (20 mm 0.787 in beam pitch) [Cable type]
The price of the product	Please contact our office	Please contact our office	Please contact our office	Please contact our office	Please contact our office
No. of beam channels	8	12	16	20	32
Protective height	160 mm 6.299 in	240 mm 9.449 in	320 mm 12.598 in	400 mm 15.748 in	640 mm 25.197 in
Current consumption:Large multipurpose indicator lights off	Emitter: 70 mA or less	Emitter: 70 mA or less	Emitter: 70 mA or less	Emitter: 75 mA or less	Emitter: 80 mA or less
	Receiver: 85 mA or less	Receiver: 90 mA or less	Receiver: 90 mA or less	Receiver: 95 mA or less	Receiver: 100 mA or less
Current consumption:Large multipurpose indicator lights up	Emitter: 120 mA or less	Emitter: 120 mA or less	Emitter: 120 mA or less	Emitter: 120 mA or less	Emitter: 120 mA or less
	Receiver: 135 mA or less	Receiver: 140 mA or less	Receiver: 140 mA or less	Receiver: 145 mA or less	Receiver: 150 mA or less
PFHD	8.59 × 10-10	1.09 × 10-9	1.30 × 10-9	1.53 × 10-9	2.17 × 10-9
MTTFD	100 years or more	100 years or more	100 years or more	100 years or more	100 years or more
Net weight (Total of emitter and receiver)	630 g approx.	700 g approx.	760 g approx.	820 g approx.	1,000 g approx.
Applicable standards:International standard	IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL 3)	IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL 3)	IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL 3)	IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL 3)	IEC 61496-1/2 (Type 4), ISO 13849-1:2015 (Category 4, PLe), IEC 61508-1 to 3 (SIL 3)
Applicable standards:Japan	JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3(SIL3)	JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3(SIL3)	JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3(SIL3)	JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3(SIL3)	JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508-1 to 3(SIL3)
Applicable standards:Europe	EN 61496-1 (Type 4), EN ISO 13849-1:2015 (Category 4, PLe), EN 61508-1 to 3 (SIL 3), EN 55011, EN 50178, EN 61000-6-2	EN 61496-1 (Type 4), EN ISO 13849-1:2015 (Category 4, PLe), EN 61508-1 to 3 (SIL 3), EN 55011, EN 50178, EN 61000-6-2	EN 61496-1 (Type 4), EN ISO 13849-1:2015 (Category 4, PLe), EN 61508-1 to 3 (SIL 3), EN 55011, EN 50178, EN 61000-6-2	EN 61496-1 (Type 4), EN ISO 13849-1:2015 (Category 4, PLe), EN 61508-1 to 3 (SIL 3), EN 55011, EN 50178, EN 61000-6-2	EN 61496-1 (Type 4), EN ISO 13849-1:2015 (Category 4, PLe), EN 61508-1 to 3 (SIL 3), EN 55011, EN 50178, EN 61000-6-2
Applicable standards:Europe	(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate.	(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate.	(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate.	(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate.	(Note) Regarding EU Machinery Directive, a Notified Body, TÜV SÜD, has certified with the type examination certificate.
Applicable standards:North America	ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06	ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06	ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06	ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06	ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14,OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06
Applicable standards:North America	(Note) With regards to the standards in the US/Canada, a Notified Body, TÜV SÜD, has certified the CTÜVUS mark.	(Note) With regards to the standards in the US/Canada, a Notified Body, TÜV SÜD, has certified the CTÜVUS mark.	(Note) With regards to the standards in the US/Canada, a Notified Body, TÜV SÜD, has certified the CTÜVUS mark.	(Note) With regards to the standards in the US/Canada, a Notified Body, TÜV SÜD, has certified the CTÜVUS mark.	(Note) With regards to the standards in the US/Canada, a Notified Body, TÜV SÜD, has certified the CTÜVUS mark.
Applicable regulations and certifications	CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety) Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification	CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety) Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification	CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety) Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification	CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety) Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification	CE Marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA Marking [Supply of Machinery (Safety) Regulations, EMC Regulations, RoHS Regulations], TÜV SÜD certification
Operating range	0.1 to 3 m 0.328 to 9.843 ft	0.1 to 3 m 0.328 to 9.843 ft	0.1 to 3 m 0.328 to 9.843 ft	0.1 to 3 m 0.328 to 9.843 ft	0.1 to 3 m 0.328 to 9.843 ft
Operating range	(Note) The operating range is the possible setting distance between the emitter and the receiver.	(Note) The operating range is the possible setting distance between the emitter and the receiver.	(Note) The operating range is the possible setting distance between the emitter and the receiver.	(Note) The operating range is the possible setting distance between the emitter and the receiver.	(Note) The operating range is the possible setting distance between the emitter and the receiver.
Beam pitch	20 mm 0.787 in	20 mm 0.787 in	20 mm 0.787 in	20 mm 0.787 in	20 mm 0.787 in
Min. sensing object	ø25 mm ø0.984 in opaque object	ø25 mm ø0.984 in opaque object	ø25 mm ø0.984 in opaque object	ø25 mm ø0.984 in opaque object	ø25 mm ø0.984 in opaque object
Min. sensing object	(Note) When the floating blanking function is used, the size of the min. sensing object is changed.	(Note) When the floating blanking function is used, the size of the min. sensing object is changed.	(Note) When the floating blanking function is used, the size of the min. sensing object is changed.	(Note) When the floating blanking function is used, the size of the min. sensing object is changed.	(Note) When the floating blanking function is used, the size of the min. sensing object is changed.
Effective aperture angle	plus or minus 2.5℃ or less [for an operating range exceeding 3 m 9.843 ft (conforming to IEC 61496-2 / ANSI/UL 61496-2)]	plus or minus 2.5℃ or less [for an operating range exceeding 3 m 9.843 ft (conforming to IEC 61496-2 / ANSI/UL 61496-2)]	plus or minus 2.5℃ or less [for an operating range exceeding 3 m 9.843 ft (conforming to IEC 61496-2 / ANSI/UL 61496-2)]	plus or minus 2.5℃ or less [for an operating range exceeding 3 m 9.843 ft (conforming to IEC 61496-2 / ANSI/UL 61496-2)]	plus or minus 2.5℃ or less [for an operating range exceeding 3 m 9.843 ft (conforming to IEC 61496-2 / ANSI/UL 61496-2)]
Power voltage	24 V DC +10-15 % Ripple P-P 10 % or less	24 V DC +10-15 % Ripple P-P 10 % or less	24 V DC +10-15 % Ripple P-P 10 % or less	24 V DC +10-15 % Ripple P-P 10 % or less	24 V DC +10-15 % Ripple P-P 10 % or less
Control outputs (OSSD 1, OSSD 2)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)
	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]
	– Max. source current: 200 mA	– Max. source current: 200 mA	– Max. source current: 200 mA	– Max. source current: 200 mA	– Max. source current: 200 mA
	– Applied voltage: same as supply voltage (between the control output and +V)	– Applied voltage: same as supply voltage (between the control output and +V)	– Applied voltage: same as supply voltage (between the control output and +V)	– Applied voltage: same as supply voltage (between the control output and +V)	– Applied voltage: same as supply voltage (between the control output and +V)
	– Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 200 mA, when using 10 m 32.808 ft length cable)
	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)
	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)
	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less

	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]
	– Max. sink current: 200 mA	– Max. sink current: 200 mA	– Max. sink current: 200 mA	– Max. sink current: 200 mA	– Max. sink current: 200 mA
	– Applied voltage: same as supply voltage (between the control output and 0 V)	– Applied voltage: same as supply voltage (between the control output and 0 V)	– Applied voltage: same as supply voltage (between the control output and 0 V)	– Applied voltage: same as supply voltage (between the control output and 0 V)	– Applied voltage: same as supply voltage (between the control output and 0 V)
	– Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 200 mA, when using 10 m 32.808 ft length cable)
	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)	– Leakage current: 200 micro A or less (including power supply OFF condition)
	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)	– Max. load capacity: 1 micro F (No load to Max. output current)
	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less	– Load wiring resistance: 3 Ω or less
Control outputs (OSSD 1, OSSD 2):Operation mode	ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)	ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)	ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)	ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)	ON when all beam channels are received, OFF when one or more beam channels are interrupted (OFF also in case of any malfunction in the Safety Light Curtain or the synchronization signal)
	(Note) The outputs are not ”OFF” when muting function is active even if the beam channel is interruped.	(Note) The outputs are not ”OFF” when muting function is active even if the beam channel is interruped.	(Note) The outputs are not ”OFF” when muting function is active even if the beam channel is interruped.	(Note) The outputs are not ”OFF” when muting function is active even if the beam channel is interruped.	(Note) The outputs are not ”OFF” when muting function is active even if the beam channel is interruped.
	(Note) In case the blanking function is valid, the operation mode is changed.	(Note) In case the blanking function is valid, the operation mode is changed.	(Note) In case the blanking function is valid, the operation mode is changed.	(Note) In case the blanking function is valid, the operation mode is changed.	(Note) In case the blanking function is valid, the operation mode is changed.
Control outputs(OSSD1, OSSD2):Protection circuit	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
Response time	OFF response: 7 ms or less	OFF response: 7 ms or less	OFF response: 7 ms or less	OFF response: 7 ms or less	OFF response: 7 ms or less
Response time	ON response: 90 ms or less	ON response: 90 ms or less	ON response: 90 ms or less	ON response: 90 ms or less	ON response: 90 ms or less
Auxiliary output (Non-safety output)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)	PNP open-collector transistor / NPN open-collector transistor (switching method)
	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]	[When selecting PNP output]
	– Max. source current: 100 mA	– Max. source current: 100 mA	– Max. source current: 100 mA	– Max. source current: 100 mA	– Max. source current: 100 mA
	– Applied voltage: same as supply voltage (between the auxiliary output and +V)	– Applied voltage: same as supply voltage (between the auxiliary output and +V)	– Applied voltage: same as supply voltage (between the auxiliary output and +V)	– Applied voltage: same as supply voltage (between the auxiliary output and +V)	– Applied voltage: same as supply voltage (between the auxiliary output and +V)
	– Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (source current 100 mA, when using 10 m 32.808 ft length cable)
	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]	[When selecting NPN output]
	– Max. sink current: 100 mA	– Max. sink current: 100 mA	– Max. sink current: 100 mA	– Max. sink current: 100 mA	– Max. sink current: 100 mA
	– Applied voltage: same as supply voltage (between the auxiliary output and 0 V)	– Applied voltage: same as supply voltage (between the auxiliary output and 0 V)	– Applied voltage: same as supply voltage (between the auxiliary output and 0 V)	– Applied voltage: same as supply voltage (between the auxiliary output and 0 V)	– Applied voltage: same as supply voltage (between the auxiliary output and 0 V)
	– Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m 32.808 ft length cable)	– Residual voltage: 2.5 V or less (sink current 100 mA, when using 10 m 32.808 ft length cable)
Auxiliary output (Non-safety output):Operation mode	OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller).	OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller).	OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller).	OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller).	OFF when control outputs are ON, ON when control outputs are OFF (Factory setting, operating mode can be changed using the SFC-HC handy-controller).
Auxiliary output (Non-safety output):Protection circuit	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
ELCA function	Incorporated (reducing mutual interference automatically)	Incorporated (reducing mutual interference automatically)	Incorporated (reducing mutual interference automatically)	Incorporated (reducing mutual interference automatically)	Incorporated (reducing mutual interference automatically)
Test / reset input function	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
Interlock function	Incorporated [Manual reset / Automatic reset (Note)]	Incorporated [Manual reset / Automatic reset (Note)]	Incorporated [Manual reset / Automatic reset (Note)]	Incorporated [Manual reset / Automatic reset (Note)]	Incorporated [Manual reset / Automatic reset (Note)]
Interlock function	(Note) The manual reset and automatic reset are possible to be switched depending on the wiring status.	(Note) The manual reset and automatic reset are possible to be switched depending on the wiring status.	(Note) The manual reset and automatic reset are possible to be switched depending on the wiring status.	(Note) The manual reset and automatic reset are possible to be switched depending on the wiring status.	(Note) The manual reset and automatic reset are possible to be switched depending on the wiring status.
External device monitoring function	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
Safety input function	Incorporated (safety contact)	Incorporated (safety contact)	Incorporated (safety contact)	Incorporated (safety contact)	Incorporated (safety contact)
Muting function	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
Override function	Incorporated	Incorporated	Incorporated	Incorporated	Incorporated
Optional functions	Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting	Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting	Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting	Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting	Fixed blanking, floating blanking, auxiliary output change, safety input (safety sensor), large multi-purpose indicator setting change, interlock setting change, external relay monitoring setting change, muting setting change, override setting change, protecting
Optional functions	(Note) In case of using optional function, the handy-controller SFC-HC is required.	(Note) In case of using optional function, the handy-controller SFC-HC is required.	(Note) In case of using optional function, the handy-controller SFC-HC is required.	(Note) In case of using optional function, the handy-controller SFC-HC is required.	(Note) In case of using optional function, the handy-controller SFC-HC is required.
Pollution degree	3	3	3	3	3
Operating altitude	2,000 m 6,561 68 ft or less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.)	2,000 m 6,561 68 ft or less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.)	2,000 m 6,561 68 ft or less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.)	2,000 m 6,561 68 ft or less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.)	2,000 m 6,561 68 ft or less (Note：Do not use or store in an environment pressurized to atmospheric pressure or higher at an altitude of 0 m.)
Environmental resistance:Degree of protection	IP67 / IP65 (IEC)	IP67 / IP65 (IEC)	IP67 / IP65 (IEC)	IP67 / IP65 (IEC)	IP67 / IP65 (IEC)
Environmental resistance:Ambient temperature	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +60 ℃ -13 to +140 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +60 ℃ -13 to +140 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +60 ℃ -13 to +140 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +60 ℃ -13 to +140 ℉	-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +60 ℃ -13 to +140 ℉
Environmental resistance:Ambient humidity	30 to 85 % RH, Storage: 30 to 85 % RH	30 to 85 % RH, Storage: 30 to 85 % RH	30 to 85 % RH, Storage: 30 to 85 % RH	30 to 85 % RH, Storage: 30 to 85 % RH	30 to 85 % RH, Storage: 30 to 85 % RH
Ambient illuminance	Incandescent light: 5,000 lx or less at the light-receiving face	Incandescent light: 5,000 lx or less at the light-receiving face	Incandescent light: 5,000 lx or less at the light-receiving face	Incandescent light: 5,000 lx or less at the light-receiving face	Incandescent light: 5,000 lx or less at the light-receiving face
Environmental resistance:Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure	1,000 V AC for one min. between all supply terminals connected together and enclosure
Environmental resistance:Insulation resistance	20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure	20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure	20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure	20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure	20 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure
Environmental resistance:Vibration resistance	10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each	10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each	10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each	10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each	10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Environmental resistance:Shock resistance	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions three times each
Emitting element	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil)	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil)	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil)	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil)	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil)
Material	Enclosure: Polycarbonate alloy	Enclosure: Polycarbonate alloy	Enclosure: Polycarbonate alloy	Enclosure: Polycarbonate alloy	Enclosure: Polycarbonate alloy
Material	Sensing surface: Polycarbonate alloy	Sensing surface: Polycarbonate alloy	Sensing surface: Polycarbonate alloy	Sensing surface: Polycarbonate alloy	Sensing surface: Polycarbonate alloy
Cable	0.15mm2 (power line: 0.2 mm2) 12-core heat-resistant PVC cable, 5 m 16.404 ft long	0.15mm2 (power line: 0.2 mm2) 12-core heat-resistant PVC cable, 5 m 16.404 ft long	0.15mm2 (power line: 0.2 mm2) 12-core heat-resistant PVC cable, 5 m 16.404 ft long	0.15mm2 (power line: 0.2 mm2) 12-core heat-resistant PVC cable, 5 m 16.404 ft long	0.15mm2 (power line: 0.2 mm2) 12-core heat-resistant PVC cable, 5 m 16.404 ft long
Cable extension	Extension up to 40.5 m 132.874 ft is possible for both emitter and receiver, with 0.2 mm2 or more cable.	Extension up to 40.5 m 132.874 ft is possible for both emitter and receiver, with 0.2 mm2 or more cable.	Extension up to 40.5 m 132.874 ft is possible for both emitter and receiver, with 0.2 mm2 or more cable.	Extension up to 40.5 m 132.874 ft is possible for both emitter and receiver, with 0.2 mm2 or more cable.	Extension up to 40.5 m 132.874 ft is possible for both emitter and receiver, with 0.2 mm2 or more cable.
Cable extension	(Note) When the muting lamp is used, the cable can be extended within 30.5 m 100.066 ft (for emitter / receiver).	(Note) When the muting lamp is used, the cable can be extended within 30.5 m 100.066 ft (for emitter / receiver).	(Note) When the muting lamp is used, the cable can be extended within 30.5 m 100.066 ft (for emitter / receiver).	(Note) When the muting lamp is used, the cable can be extended within 30.5 m 100.066 ft (for emitter / receiver).	(Note) When the muting lamp is used, the cable can be extended within 30.5 m 100.066 ft (for emitter / receiver).
Accessories	MS-SFC-1 (Standard mounting bracket): 1 set	MS-SFC-1 (Standard mounting bracket): 1 set	MS-SFC-1 (Standard mounting bracket): 1 set	MS-SFC-1 (Standard mounting bracket): 1 set	MS-SFC-1 (Standard mounting bracket): 1 set
Accessories	SF4C-TR25 (Test rod): 1 No.	SF4C-TR25 (Test rod): 1 No.	SF4C-TR25 (Test rod): 1 No.	SF4C-TR25 (Test rod): 1 No.	SF4C-TR25 (Test rod): 1 No.
